304 Stainless Steel Wire Drawing Concealed Folding Door Hinge Kit, 40KG Multi-Point Full Open Hidden Door Hardware for Wooden Doors

This Multi-Point Concealed Folding Door Hinge Kit is made of anti-rust 304 wire drawing stainless steel, supporting up to 40KG wooden doors with thickness 25–45mm. The linkage structure allows full door opening to expand usable room space, equipped with middle & side bottom hinges for left/right door mounting. Complete screw accessories and clear assembly drawings are provided, ideal for home, hotel and office interior wooden folding doors; door panel excluded, slight color difference may appear due to screen display.

分类： Folding Door Hardware

描述
用户评价 (0)

Core Product Highlight

Multi-point linkage folding bottom hinge system, enables 100% full door leaf opening to maximize interior usable space; fully concealed hidden installation for seamless minimalist door appearance.

Product Construction & Material

Entire frame and hinges crafted from premium 304 stainless steel, anti-rust, corrosion-resistant for long service life
Wire drawing matte surface finish, scratch-resistant and easy to clean

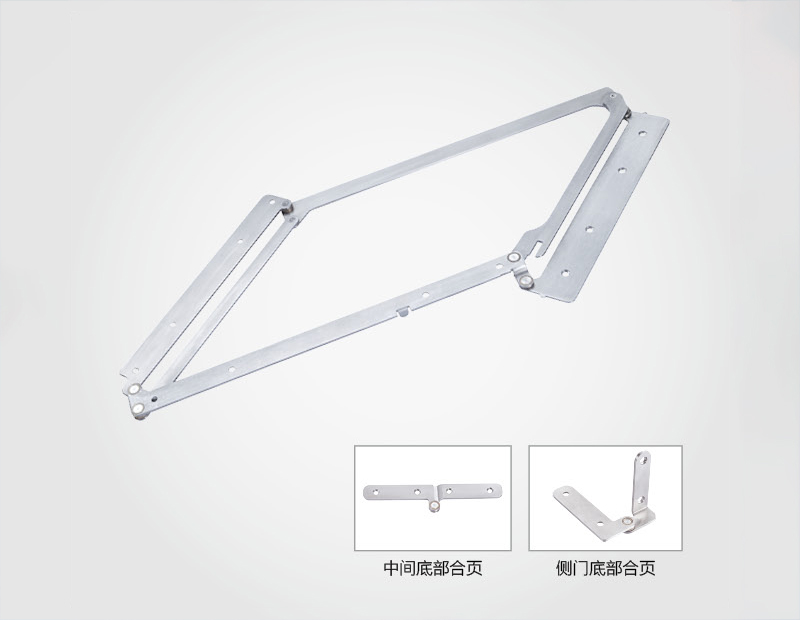

Complete matched hinge set: main linkage frame, middle bottom hinge, side door bottom hinge, concealed folding hinge
Full matching fastener set including self-tapping screws for one-step installation

Load & Application Specs

Max single door bearing capacity: 40 KG
Suitable door type: Interior wooden wire drawing folding doors
Applicable door thickness: 25–45mm
Application scene: Residential houses, offices, hotels, commercial indoor spaces
Package form: Packed as complete set in carton box

Installation Advantages

Multi-point connection combined linkage structure for stable force bearing

Simple assembly design with adjustable components, easy mounting and fine-tuning
Two hinge options (middle bottom hinge / side door bottom hinge) for left-opening & right-opening doors

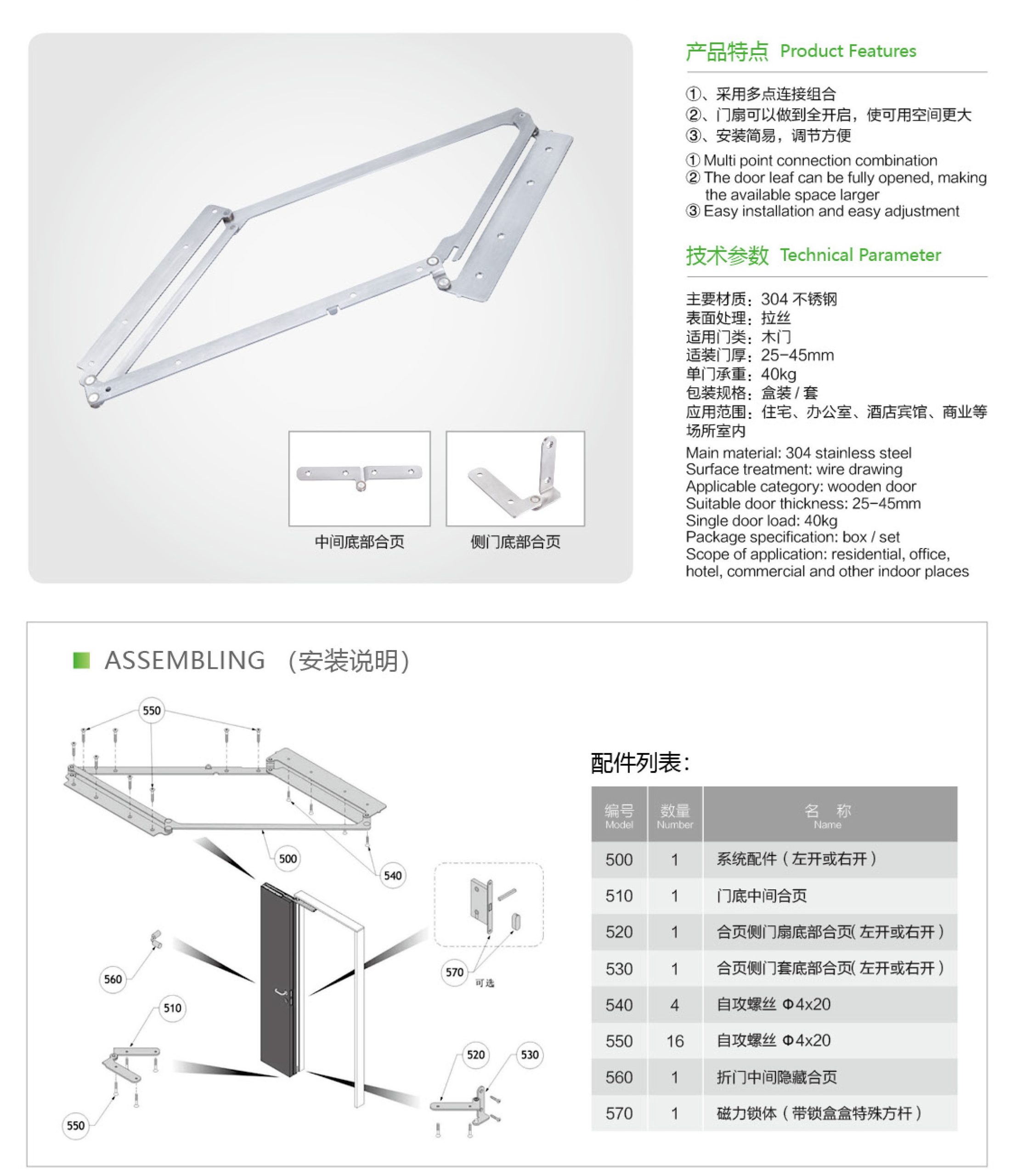

Detailed dimension assembly diagram and complete parts list for carpenter quick installation
Optional magnetic lock body with lock box and special square spindle for integrated locking solution

Daily Care Tips

Wipe stainless steel hinge frame with soft dry cloth regularly to remove dust
Avoid sharp hard objects scratching wire drawing metal surface
Do not use acidic or corrosive cleaning liquids on stainless steel components

Important Notes

This hinge kit supports both left-hand and right-hand door installation configurations
Magnetic lock body (model 570) is an optional accessory, not standard included
Minor chromatic aberration may exist between physical product and photos due to screen display difference
This hardware set only contains folding door hinge fittings; wooden door panel is not included
