Core Product Highlight
Ghost levitation invisible sliding track system, deliver minimalist frameless floating effect specially customized for narrow frame doors. Fully concealed hidden rail design keeps interior space neat and tidy with no exposed hardware.
Product Construction & Material
- Main fittings made of heavy-duty zinc alloy + wear-resistant engineering plastic for long service life
- Complete multi-section aluminum alloy track set including upper rail, vertical horizontal rail, outer cover and bottom rail
- Built-in soft close buffer mechanism, effectively buffer sliding impact, eliminate slamming noise and protect narrow door frames
- Smooth silent pulley rollers with balanced weight bearing, stable sliding without jitter
- Supporting dust brushes included to clean track slots and reduce sliding abrasion
Load & Application Specs
- Max bearing capacity: 60 KG per single door set
- Applicable single door width: ≥800mm
- Exclusive use: Narrow frame wooden interior doors, minimalist slim frame partition door renovation
Installation Advantages
2 flexible installation modes (with door cover / without door cover) to match different doorway structures
- Full concealed top-mounted track design, no protruding bottom track to prevent tripping risks
- Complete all-in-one hardware pack: sliding pulley assembly, buffer dampers, multi-style aluminum tracks, fixing brackets, dust brushes, positioning stoppers, all installation accessories included

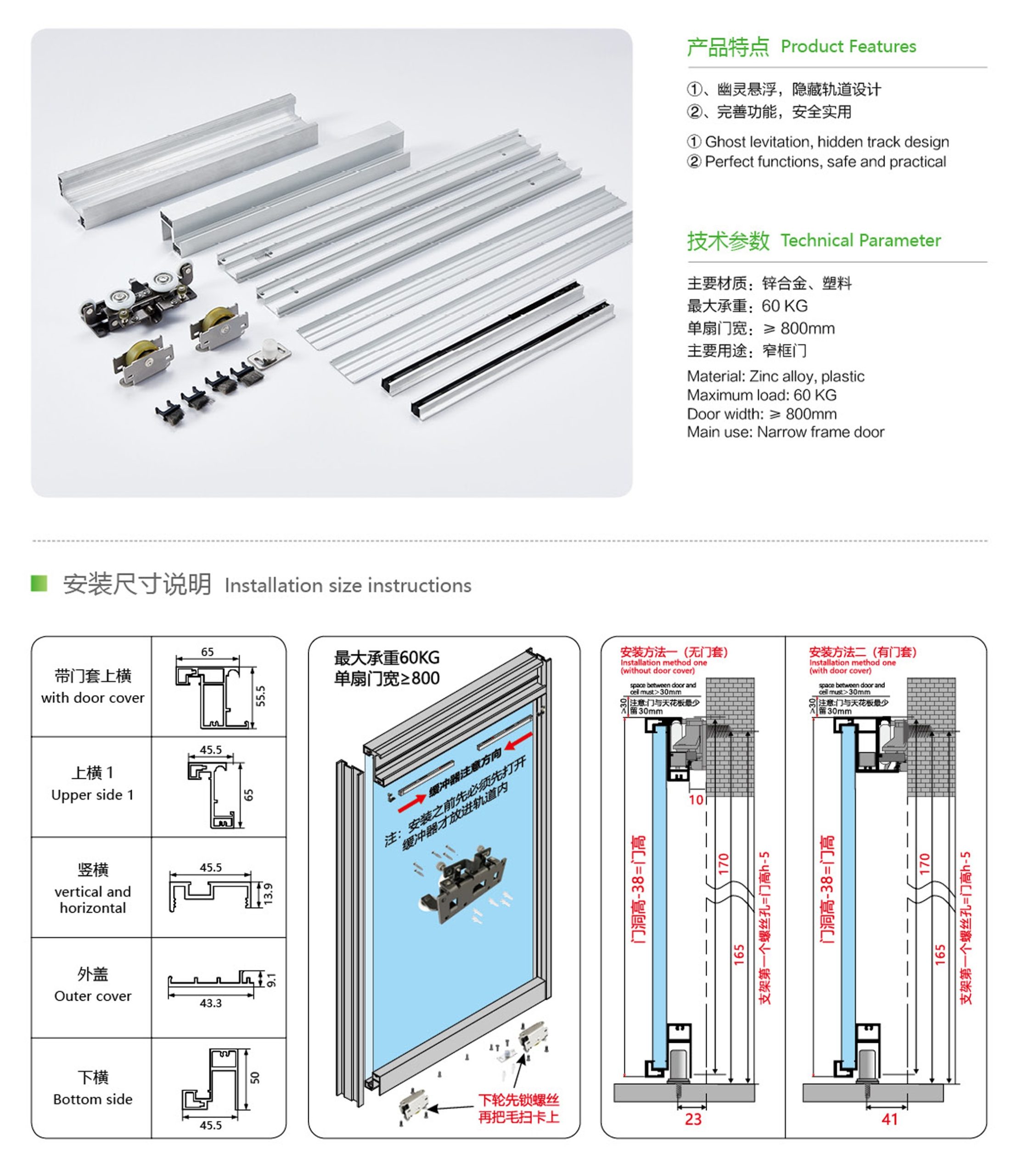

- Clear standardized cross-section dimension drawings and step-by-step installation guidance for easy carpenter operation
Daily Care Tips
- Regularly wipe aluminum tracks and rollers with soft dry cloth to remove dust and debris
- Avoid hard sharp objects scratching aluminum track surface and narrow door frames
- Do not spray corrosive chemical cleaner on zinc alloy metal fittings
Important Notes
- All aluminum track profiles can be cut to custom length based on your actual narrow frame door size
- Two installation options available for doorways with or without door cover, reserved fixed hole positions simplify mounting
- There might be minor color deviation between physical tracks and pictures, caused by different screen display parameters
- This hardware kit only contains sliding door fitting accessories, narrow frame door panel is not included
